2J I-Bar 4G-5G WiFi Ultraband Adhesive Antenna 617 to 5925MHz

Item No:
662844
MPN:
2J5083P
$17.00
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown Store
  • Unavailable at Castle Hill Store
  • Unavailable at Northmead Store
Product Related Products Related Summary Summary Details Details Specifications Specs Reviews Reviews

The 2J5083P brings exceptional signal strength and quality in a 360-degree radiation pattern due to its omni-directional design while maintaining high peak gains and efficiencies.

This antenna is designed with CAT-M technology taking LTE into the next generation of IoT applications making it fully compatible with existing LTE networks and reducing implementation costs for carriers via backward-compatibility.

In addition, this antenna is a great solution to prepare for worldwide future technology such as NR (New Radio). 2J5083P offers NB-IoT (CAT-M2) designed to send data directly to primary servers eliminating the need for a gateway and keeping implementation costs low.

FEATURES:

  • Ultra Wide band Antenna
  • 617-5925 MHz Sub 6GHz Bands
  • Full 4GLTE backward compatibility
  • Ground Plane Independent
  • 3.6 dBi 5G NR Peak Gain
  • Low Profile
  • Customizable Cable and Connector

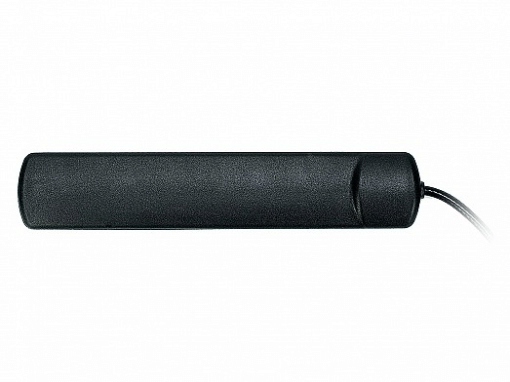

2J I-Bar 4G-5G WiFi Ultraband Adhesive Antenna (2J5083P)

With overall dimensions of only 116 x 22 x 6.7 mm, high-quality adhesive tape and PC/ABS UV stable housing, the 2J5083P can be installed on any glass or ABS surfaces found in the most extreme outdoor environments without any risk of failure.

The 2J5083P features a standard SMA-Male connector and a 300 cm long LL100 cable. As an added measure, this antenna was designed with ground plane independence in order to eliminate any grounding restrictions during the installation process.

The health of the environment is important to 2J Antennas; therefore, all our products are manufactured without hazardous materials making us fully REACH and RoHS compliant.

Downloads

2J I-Bar 4G-5G WiFi Ultraband Adhesive Antenna, 617 to 5925 MHz Data Sheet
More Information
SKU 662844
MPN 2J5083P
Assembled to Order No
Brand 2J
Shipping Latency None
Display In Stock In Frontend No
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Product Use General
Warranty Period 1 Year Warranty
Warranty Contact https://www.2j-antennas.com/
