2J 915MHz LPWAN Narrowband Hinged Antenna 902 to 928MHz SMA Male

Item No:
665679
MPN:
ANT-2J-00005
$14.00
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown Store
  • Unavailable at Castle Hill Store
  • Unavailable at Northmead Store
Product Related Products Related Summary Summary Details Details Specifications Specs Reviews Reviews

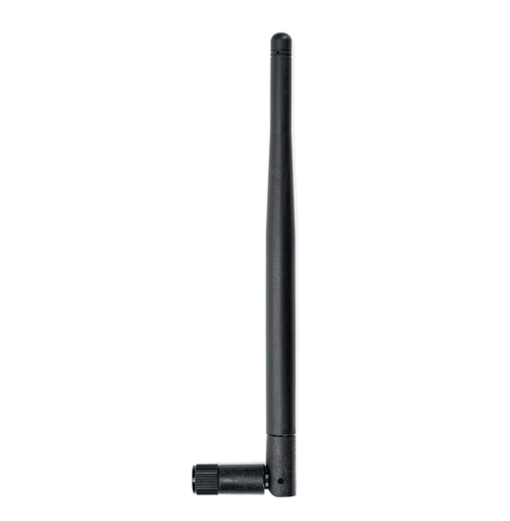

This versatile antenna combines high performance narrowband coverage for the LoRa 915 ISM spectrum and the smallest antenna design on the market.

The innovative hinged swivel design allows the antenna to be positioned in a straight, right or 45-degree angle so it can be rotated into the direction with the most signal strength and reduce interference with other antennas nearby.

FEATURES:

  • Dipole antenna
  • Ground plane independent
  • 2.0 dBi 915 MHz ISM Peak Gain
  • Hinged Connector

2J 915 MHz LPWAN Narrowband Hinged Antenna (2JW0515-915-C952B)

The antenna housing is manufactured from a PC/ABS UV protective material, allowing it to withstand extreme temperatures ranging between -40C to +85C and making it ideal for outdoor applications. The design dimensions are 135 x 19 x 10 mm (straight angle), 110 x 42 x 10 mm (right angle) and 88 x 112 x 10 mm (45-degree angle).

This antenna is ground plane independent allowing for a wide range of installation options with minimal restrictions. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.

Downloads

2J 915 MHz LPWAN Narrowband Hinged Antenna, 902 to 928 MHz, SMA Male Data Sheet
More Information
SKU 665679
MPN ANT-2J-00005
Brand 2J
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Product Use General
Warranty Period 1 Year Warranty
Warranty Contact https://www.2j-antennas.com/
