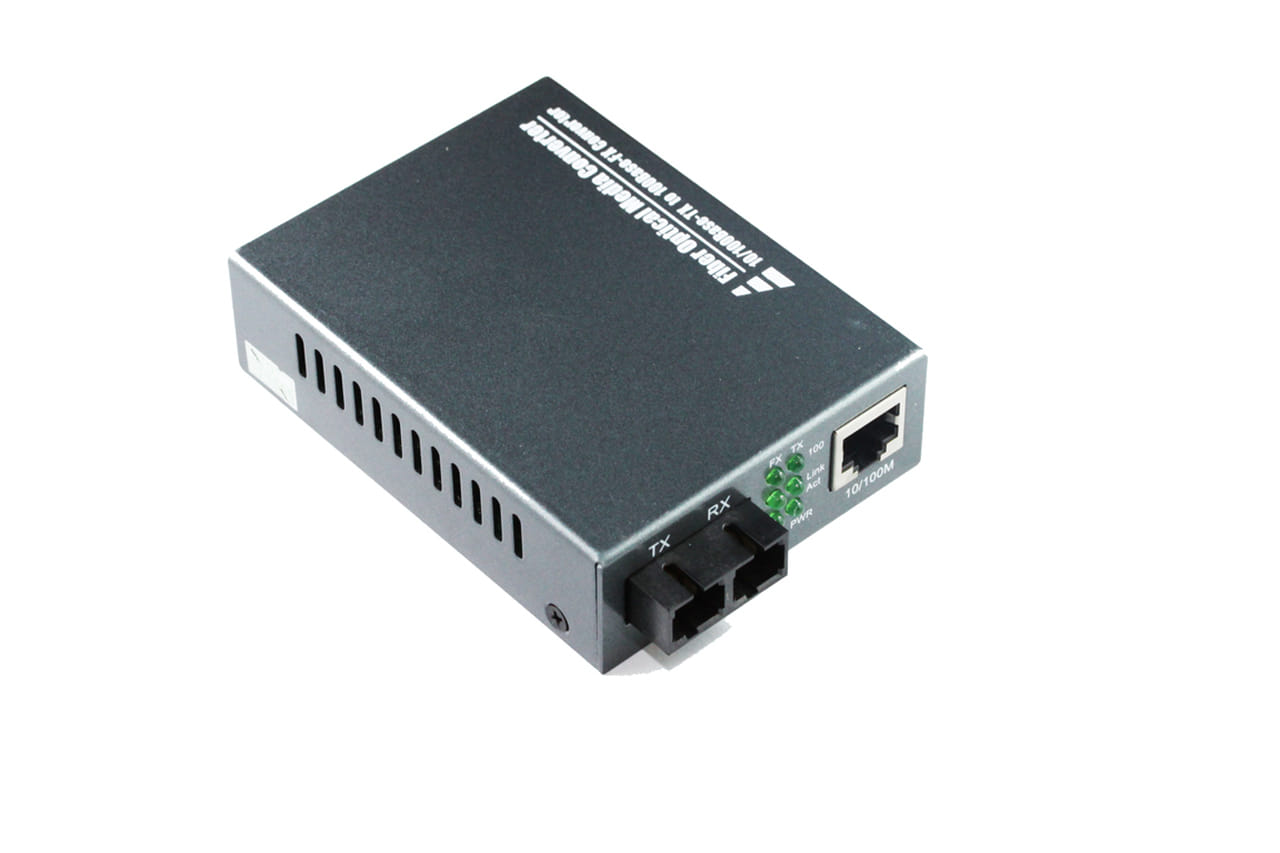

10/100m SC Multimode Media Converter

Product Description

Introduction

This media converter complies with IEEE802.3 standards, It is designed to convert data signal between 10/100 Base-Tx and 100 Base-Fx fast Ethernet. The media converter is connected between Fiber Cable and twisted Cable segments with network.
The media converter is connected between Fiber Cable and twisted Cable segments with network operating smoothly.
This converter can be used as stand-alone module to the 19 converter rack of 14 slot, also as card use to the 19 converter rack of 16 slot
Converter is transparent to all protocols, can be used all areas as Fiber to The Home, Fiber to the Business or Fiber to The Curb.

Features

-10/100Mbps and full/half duplex automatically configure in TP port.
-Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-Tx, 100Base-Fx Standards
-MDI/MDI-x Auto Negotiation
-LED Indicators: POWER, Fx LINK/ACT, 100, TP LINK/ACT, FDx/COL.
-Optional 19" System Chassis (OPT-R142) holds up to 14 Media Converters
-Hot Pluggable & Wall-Mountable
-ROHS & CE approved

Wavelength:

Multi-mode: 1310nm;

Fiber Cable(m):

8.3/125, 8.7/125, 9/125 or 10/125 single-mode

Maximum distance:Multimode;2km(Default),
